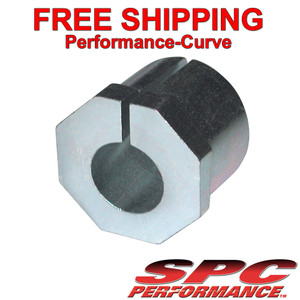

SPC .50° Ford/Mazda Camber/Caster Sleeve Specialty Products - 23182

SPC .50° Ford/Mazda Camber/Caster Sleeve Specialty Products - 23182

SKU:
SPE23182
|
UPC:
82642231820
$13.70
$23.04
(You save $9.34 )
(No reviews yet)
Condition:
New
Current Stock:
Description
These popular sleeves are widely used to adjust caster and/or camber on many Ford and Mazda 2/4WD trucks. To install, simply loosen and remove upper ball joint pinch bolt. Remove top snap ring if one is present. Use 77880 or 88830 sleeve puller to remove the existing sleeve. To save time during alignment, use 23199 zero degree sleeve to determine initial readings, then install correct sleeve. Note: Sleeves adjust to a smaller degree on Ford 4WD light trucks.

Series     2WD Adjust        4WD Adjust
Part #     Total Change     Total Change
23181     .25 degree        .20 degree
23182     .50 degree        .40 degree
23183     .75 degree        .60 degree
23184     1.00 degree      .75 degree
23185     1.25 degree      .90 degree
23186     1.50 degree      1.10 degree
23187     1.75 degree      1.25 degree
23188     2.00 degree      1.40 degree
23189     2.25 degree      1.60 degree
23190     2.50 degree      1.80 degree
23191     2.75 degree      2.00 degree
23192     3.00 degree      2.25 degree
23193     3.25 degree      2.50 degree
23194     3.50 degree      2.75 degree
23199     0.00 degree

To save time during alignment, use the 23199 zero sleeve to determine initial readings.

Adjustment range: Cam./Cas. ±.25 degree to ±3.50 degree
Installation time: .5 hr/side
Required: 1 per wheel
Warranty
Lifetime
Additional Information
Material:
Aluminum
Number of Items:
1
Manufacturer Warranty:
Lifetime
Manufacturer Part Number:
10552
